MD58 Multi-functional Module with LED

Series：

Format：See the following profile

Specifications　　

Module model：	MD58 series
Applications：	Coffee machines, household appliances and other electronic products;
Product Features:	It integrates LED display, vibration, rotation and compression.
Functions：	Function selection and confirmation;
Main Specifications:	Rated power: 0.125W; Maximum operating voltage: DC 10V; Working temperature: -20℃~60℃; Mechanical rotation angle: 180°; Number of detent: 13 Rotational torque: 1500±300gf.cm; Switch operating force: 600±150gf gf; Press switch travel: 1.5 ±0.5 mm Rotational life: 30,000 cycles Min; Push-on switch life: 30,000 cycles Min; LED color: Red/ Blue/ Green Rated voltage: DC 3-5V

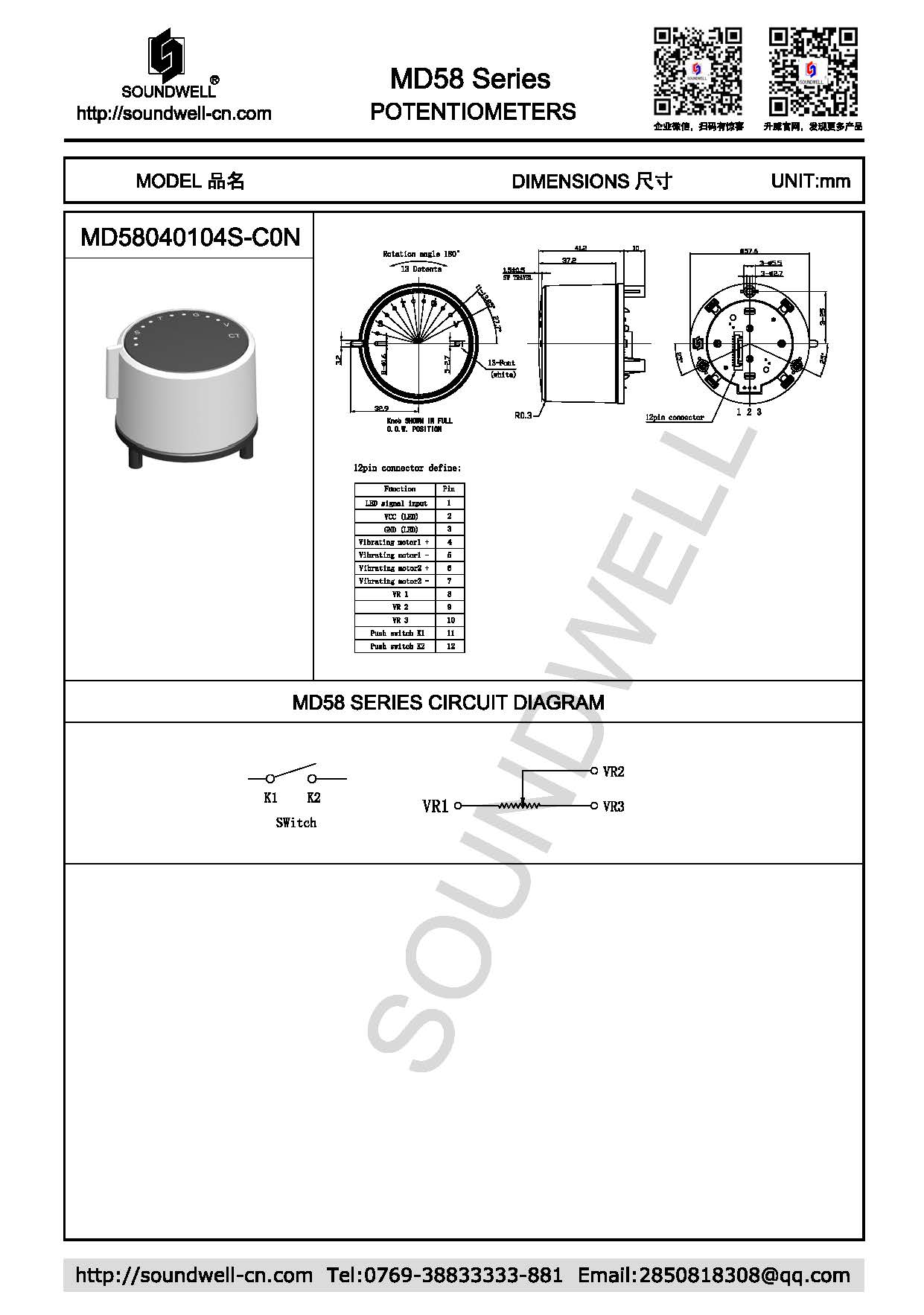

MD58 Product Specifications

ONE、MECHANICAL CHARACTERISTIC

1. Rotational torque: 1500±300 gf.cm

2. Number of detent: 13

3. Shaft Stop Strength: ≥5 Kgf.cm

4. Shaft Wobble (mm p-p): 0.3mm Max

TWO、ELECTRICAL CHARACTERISTIC
1. Total Resistance Range: B10K±20%

2. Resistance Taper: B

3. Rated Power: 0.125W

4. Maximum Operating Voltage: DC 10V

5. Linearity Error Each Stop: ±3.5%

6. Insulation Resistance: 50M? 1 Minute at DC 250V

7. Dielectric Voltage: 1 Minute at AC 250V

THREE、ENDURANCE CHARACTERISTIC

1. Rotational life: 30,000 cycles Min

2. Push operating life: 20,000 cycles Min

Note: In this catalog, if some parameters or drawings are different from the "Approval sheet", it's subject to the "Approval sheet".
